EGIS Family

Rugged Display & Computing Platform for Land Systems

Scalable, mission-ready display and computing systems for land platforms.

Configure for your platform
  • MIL-STD compliant family
  • Configurable I/O
  • Passive cooling
  • Scalable architecture
EGIS NG
EGIS tablet - operator HMI

Three configurations. One platform family.

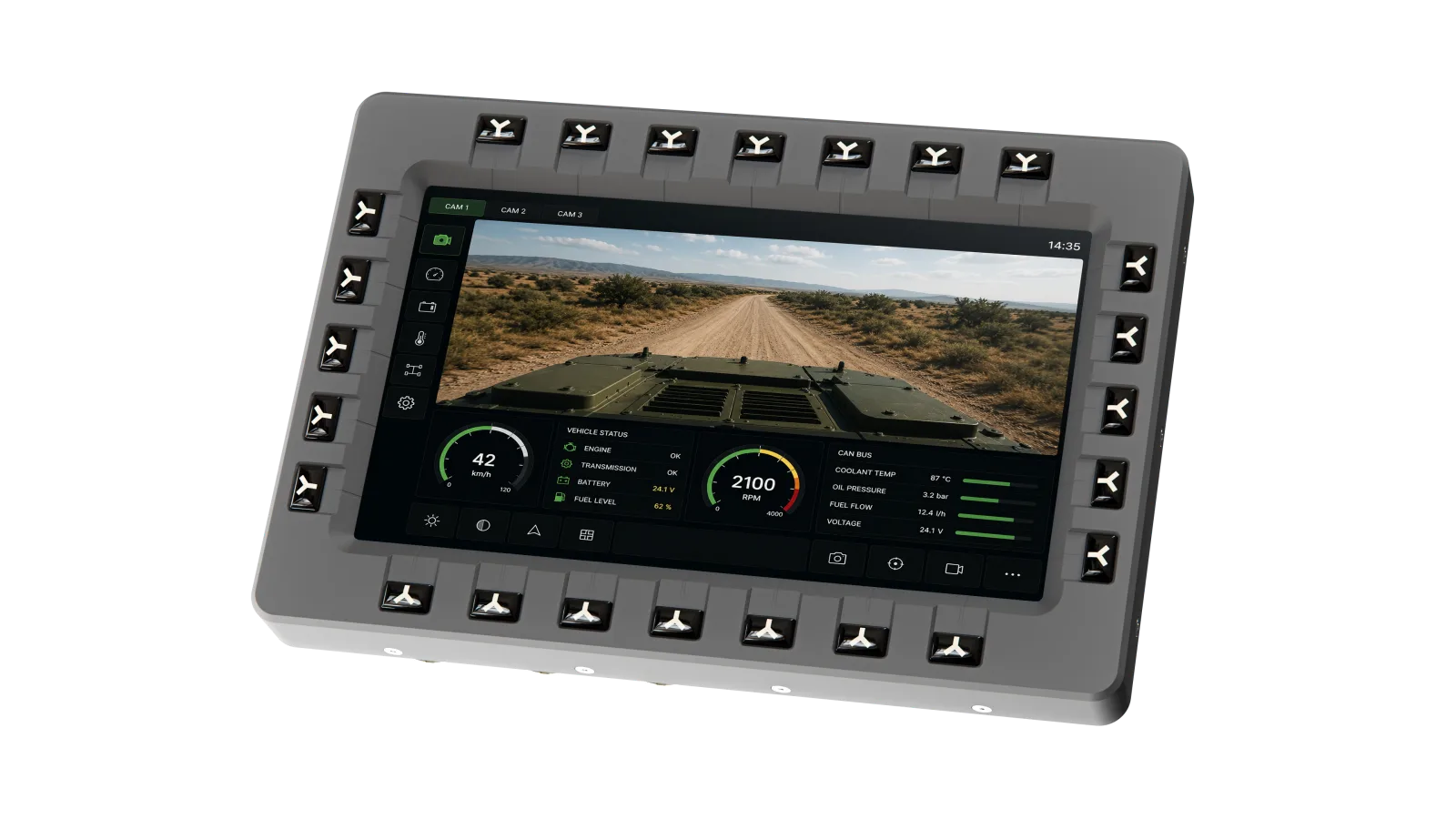

EGIS Lite
EGIS Lite
Cost-effective ARM
  • NXP i.MX 95 ARM
  • 16 GB LPDDR5
  • 256 GB eMMC Flash
  • Linux Yocto
  • Integrated IP camera support

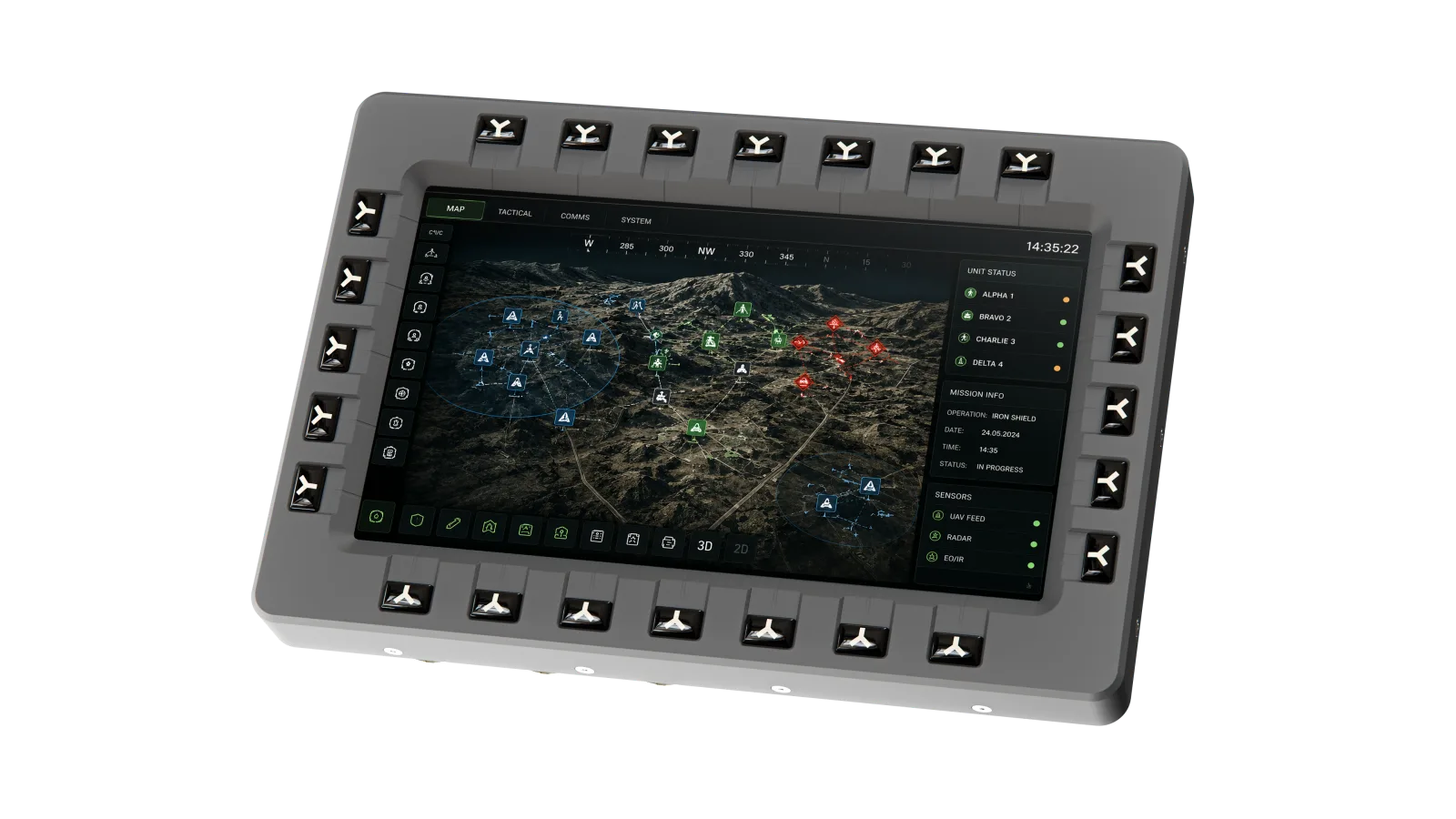

EGIS NG
EGIS NG
High-performance
  • 13th Gen Intel Core i7
  • x86 / x64 architecture
  • Up to 32 GB RAM
  • Up to 2 TB NVMe SSD
  • Rich high-speed I/O

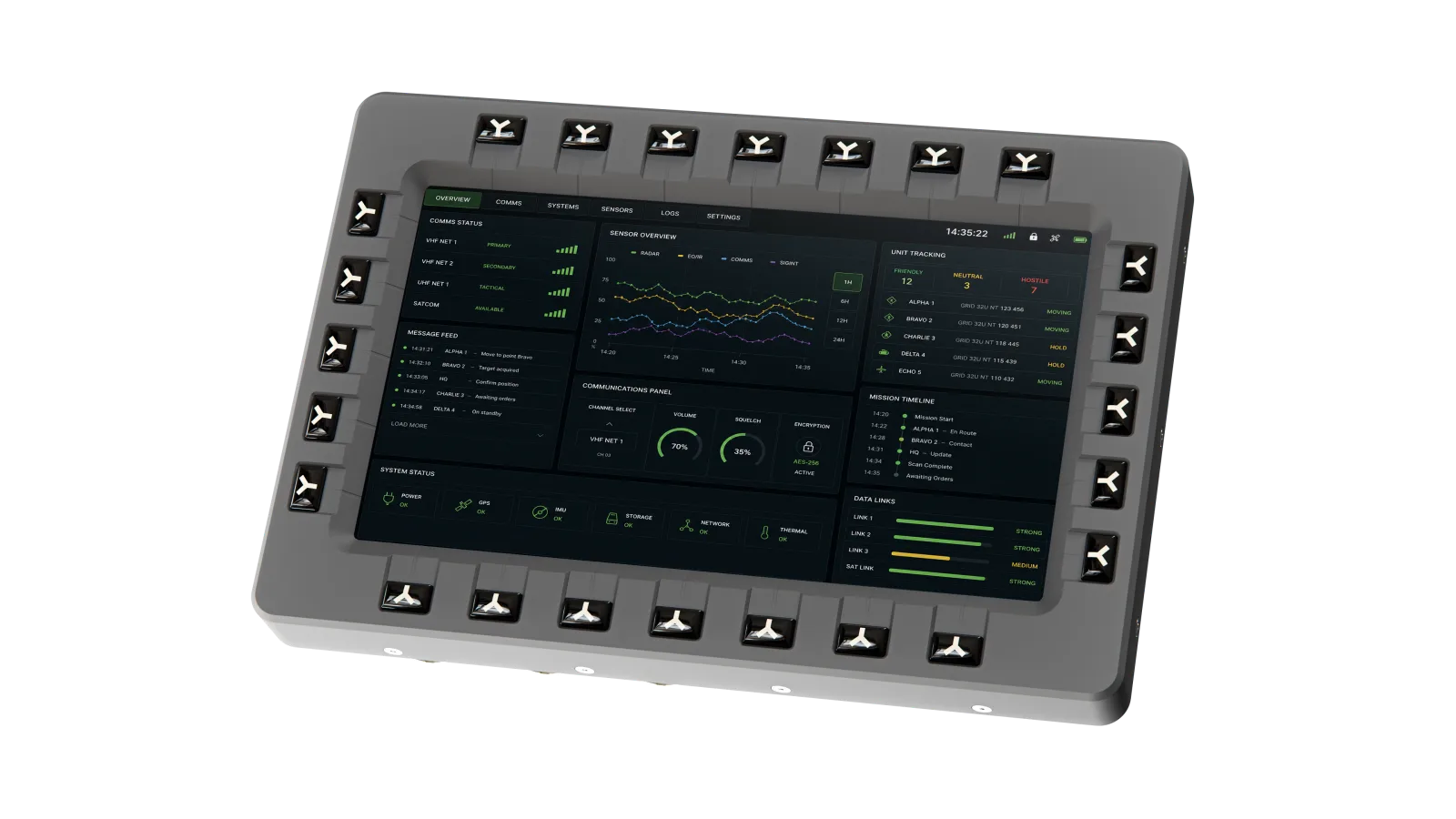

EGIS Expander
EGIS Expander
Display & control
  • Mechanical keyboard
  • Optional touchscreen
  • 1–2 units per main unit
  • Wider desktop
  • HDMI / DP & USB

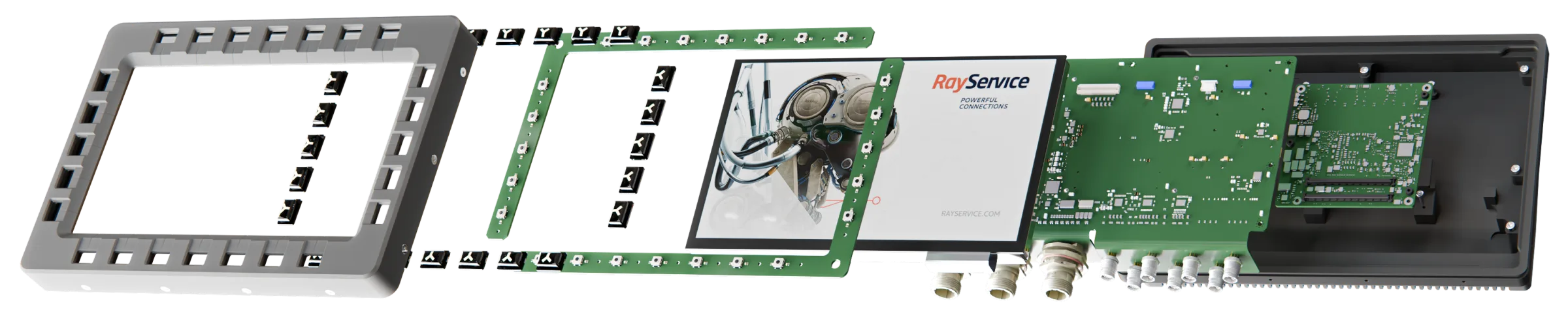

EGIS exploded view
01 Environmental resistance according to MIL-STD-810G
02 Electromagnetic interference (EMI) characteristics according to MIL-STD-461F
03 LCD size: 10.2" – 40"
04 Resolution: Full-HD 1920×1080 px
05 Power supply designed in accordance with MIL-STD-1275E
06 Operating temperature: −40 / +85 °C
  • 01 Environmental resistance according to MIL-STD-810G
  • 02 Electromagnetic interference (EMI) characteristics according to MIL-STD-461F
  • 03 LCD size: 10.2" – 40"
  • 04 Resolution: Full-HD 1920×1080 px
  • 05 Power supply designed in accordance with MIL-STD-1275E
  • 06 Operating temperature: −40 / +85 °C
Built for harsh environments

Built for platforms where standard electronics are not enough

EGIS Family provides rugged display and computing units for land systems, vehicle platforms, operator workstations and mission applications requiring reliable operation, flexible integration and long-term availability.

  • 01

    Mission reliability

    Designed for harsh environments, vehicle power conditions, vibration, shock, temperature stress and electromagnetic compatibility requirements.

  • 02

    Integration flexibility

    Multiple communication, display, camera, serial, USB, Ethernet and vehicle bus interfaces support various platform architectures.

  • 03

    Scalable performance

    Choose high-performance computing, cost-effective ARM-based operation, or extended operator workspace with additional display units.

Compliance

Designed to meet demanding military platform requirements

All EGIS Family variants are designed in accordance with key military standards for environmental resistance, electromagnetic compatibility and vehicle power supply conditions.

MIL-STD-810G

Environmental resistance

Shock, vibration, temperature, humidity, salt spray, altitude and temperature shock requirements.

MIL-STD-461F

EMI / EMC characteristics

Electromagnetic interference characteristics for demanding platform environments.

MIL-STD-1275E

Vehicle power supply

Designed for military vehicle power conditions.

DIN EN 60529

Ingress protection

IP5x / IPx3 according to configuration.

Rugged platform proof points
−40 / +85 °C Passive cooling Aluminium chassis No moving parts Blackout modes
Specifications

Ready for complex platform integration

EGIS Family supports architectures from standalone rugged display computers to integrated vehicle electronics and multi-display operator workstations.

EGIS Lite
Role
ARM computing unit
CPU architecture
ARM / NXP i.MX 95
Memory
16 GB LPDDR5
Storage
256 GB eMMC
CAN FD
2× 4 Mbit
Ethernet
1× 1 Gbps + 4-port switch
USB
1× USB 3.0 + 2× USB 2.0
Display
DisplayPort
Serial
1× RS232/422/485
Expansion
M.2 E-key
EGIS NG
Role
High-performance computer
CPU architecture
Intel x86/x64
Memory
Up to 32 GB
Storage
Up to 2 TB NVMe SSD
CAN FD
4× 8 Mbit
Ethernet
2× 2.5 Gbps
USB
2× USB 3.2 + 2× USB 2.0
Display
HDMI, DisplayPort
Serial
2× RS232/422/485
Expansion
M.2 E-key, M.2 M-key
EGIS Expander
Role
Display / control extension
CPU architecture
Extension unit
Memory
-
Storage
-
CAN FD
Through host
Ethernet
Through host
USB
USB
Display
HDMI / DP
Serial
-
Expansion
-

Final mechanical design, connector layout and configuration may vary according to customer and platform requirements.

Architectures

From standalone HMI to multi-display mission workspace

EGIS Family covers deployments from a single operator display to multi-unit workstations with central processing and data distribution.

Sensors / Cameras
CAN / Ethernet / Video
EGIS NG or Lite
processing & visualization
Operator HMI
Network / Expander
  • 01

    Vehicle HMI

    Operator interface for vehicle systems, platform control and mission applications.

  • 02

    Situational awareness

    Camera, video and sensor visualization for land platforms and mobile systems.

  • 03

    Command & control workstation

    Multi-display workspace using EGIS NG with one or two EGIS Expander units.

  • 04

    Platform data gateway

    Processing, visualization and distribution of vehicle bus, network and sensor data.

Let's configure EGIS for your platform.

Ray Service' sales team — tell us your platform constraints and we will tailor an EGIS configuration.
